Understanding how Linux boots is essential for anyone working with servers, development, or system administration. Behind the scenes, a structured sequence of events takes place—from powering on your machine to loading the desktop or terminal.

⚡ Overview of Linux Boot Process

Power On → POST → MBR → GRUB → Kernel → Init → GUI/CLI

🔌 1. POST (Power-On Self Test)

When you power on your system, the BIOS/UEFI performs a POST (Power-On Self Test).

What happens here:

Checks hardware (RAM, CPU, keyboard, storage)
Detects bootable devices
Hands control to bootloader

👉 If hardware fails, boot process stops here.

📊 Boot Stage Visualization

[Power On]
     ↓
   [POST]
     ↓
  Hardware Check ✔

💽 2. MBR (Master Boot Record)

After POST, the system looks for the MBR in the bootable disk.

Key points:

Located in the first sector of the disk
Contains bootloader info
Very small (512 bytes)

👉 Its job is to load the bootloader (GRUB).

📊 MBR Structure

+---------------------+
| Bootloader Code     |
| Partition Table     |
| Boot Signature      |
+---------------------+

🚀 3. GRUB (Bootloader)

GRUB (Grand Unified Bootloader) is responsible for loading the Linux kernel.

What GRUB does:

Displays boot menu
Lets you choose OS or kernel
Loads kernel into memory

📊 GRUB Flow

[MBR]
   ↓
 [GRUB Menu]
   ↓
Select OS / Kernel

🧠 4. Linux Kernel

The kernel is the core of the operating system.

Responsibilities:

Initializes hardware drivers
Mounts root filesystem
Starts system processes

📊 Kernel Initialization

[GRUB]
   ↓
[Load Kernel]
   ↓
[Initialize Hardware]

⚙️ 5. Init System (systemd / init)

After the kernel loads, it starts the init system.

Common init systems:

systemd (modern Linux)
init (older systems)

What it does:

Starts background services (daemons)
Sets up system environment
Brings system to usable state

📊 Init Process

[Kernel]
   ↓
[Init / systemd]
   ↓
Start Services

🖥️ 6. GUI or CLI (User Interface)

Finally, Linux presents the user interface:

Two possibilities:

GUI → Desktop (GNOME, KDE)
CLI → Terminal login

📊 Final Stage

[Init]
   ↓
[Login Screen]
   ↓
GUI  OR  CLI

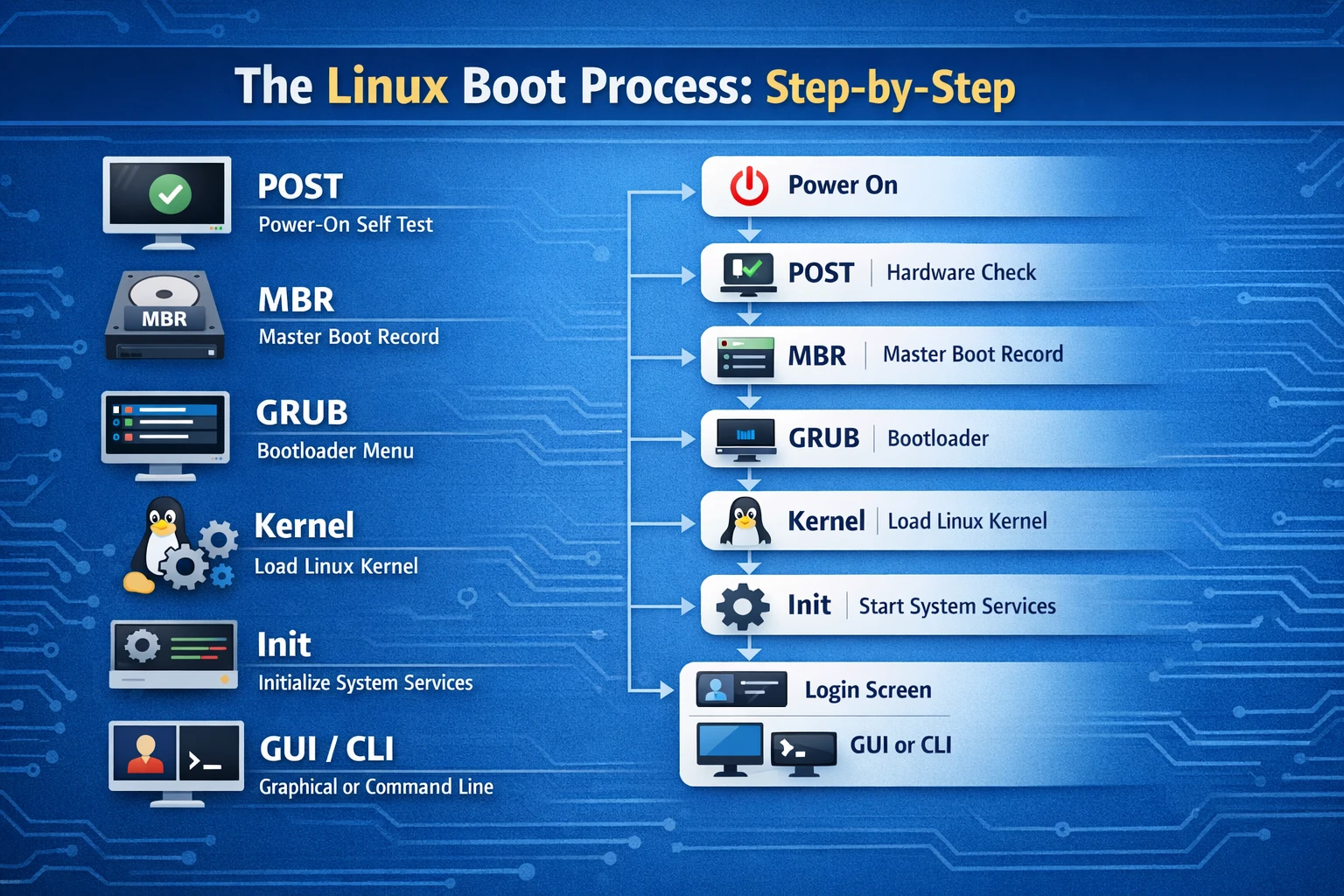

🧩 Complete Boot Process Diagram

Here’s the full flow in one view:

+———–+
| Power On |
+———–+
↓
+———–+
| POST |
+———–+
↓
+———–+
| MBR |
+———–+
↓
+———–+
| GRUB |
+———–+
↓
+———–+
| Kernel |
+———–+
↓
+———–+
| Init |
+———–+
↓
+——————+
| GUI / CLI Login |
+——————+

🎯 Key Takeaways

POST → Checks hardware
MBR → Loads bootloader
GRUB → Loads kernel
Kernel → Initializes system
Init → Starts services
GUI/CLI → User interaction

👉 Each stage depends on the previous one—if one fails, the system won’t boot properly.

🚀 Bonus: Learn More

Linux Boot Process Explained: https://www.kernel.org/doc/html/latest/

systemd Documentation: https://systemd.io/

🏁 Conclusion

The Linux boot process may seem complex, but it follows a clear and logical sequence. Once you understand each stage—POST to GUI—you can troubleshoot boot issues and gain deeper control over your system.
